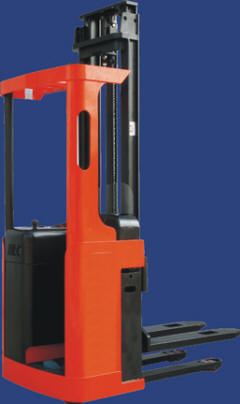

WTC Ride-on Stacker

NEW MODERN AND TOP CLASS RIDE-ON STACKER




  • RS16 stand-on stacker is designed for a high turn round of goods in racking, when loading and unloading, as well as for the horizontal transport of goods up to 1600kg. Normal commercial pallets can be handled. The RS16 is also very flexible when used for order picking and as a working / lifting table.

  • Effortless power-assisted-steering

  • Powerful and economic with maintenance-free 3-phase AC drive motor

  • Lower life cycle costs

  • High capacity at high lifting height

  • Efficient and quiet hydraulics

  • Ergonomic operator cab

  • Long life control lever

  • Danfoss drive wheels

  • Danfoss controller

  • Hydraulic motor unit from Europe

  • This specification sheet according to VDI regulation 2198 only provides technical values for the standard stacker. Non-standard types, additional equipment,etc. could produce other values. Right reserved for technical changes and improvements.




TECHNICAL DATA

Characteristics Model     RS16
Power supply(electric,diesel, petrol,gas,mains electric)     electric
Type of operation(hand pedestrian, stand on, rider seated, order picker)     stand on
Capacity /rated load Q Kg 1600
Load center distance C mm 600
Load distance X mm 765
Wheelbase y mm 1457
Weights Weight(including battery) Kg kg 1450
Axle loadings laden drive end/load end Kg kg 1290/1760
Axle loadings unladen
drive end/load end		 Kg kg 1110/340
Wheels types Tyres(rubber, Vulkollan, pneumatic, polyurethane)     rubber/polyurethane
Tyre size        drive end mm mm Φ254x82
Tyre size        load end mm mm Φ80x70
Castor wheels(dimensions)   mm Φ150x60
Wheels, number(x=drive wheel) drive end/load end     1x -1/ 4
Track width(front)        drive end b10 mm 635
Track width(rear)        load end b11 mm 395
Dimensions Closed mast height h1 mm See mast table
Free lift h2 mm See mast table
Lift height h3 mm See mast table
Extended mast height h4 mm See mast table
Overhead load guard(cab)height h6 mm 2245
Standing height h7 mm 225
Height of steering wheel h14 mm 1255
Fork height lowered h13 mm 85
Overall length l1 mm 2035
Length to front face of fork l2 mm 885
Overall width b1 mm 978
Fork dimensions s/e/l mm 60/180/1150
Fork carriage with b3 mm 645
Overall fork width b5 mm 575
Floor clearance under mast,laden m2 mm 25
Working aisle with 800x1200 pallet lengthwise Ast   2246
Outer turning radius Wa mm 1655
Performance Travel Speed        laden/unladen   km/h 8.8/9.2
Lifting speed        laden/unladen   mm/s 145/215
Lowering speed     laden/unladen   mm/s 260/270
Gradeability       laden/unladen   % 7/15
Brakes     electric
Electric Motor Drive motor   kW 3.3
Lifting motor   kW 3.0
Battery acc.to DIN 43531/35/36 A,B,C,no 1)     43531 B
Battery voltage, norminal capacity K5 1)   V/Ah 24/360
Battery weight   kg 350
Battery dimensions l/w/h 1)   mm 930/210/750
Other Type of drive control     MOSFET Control AC
Noise peak at operator's ears   dB(A) <70

Residual Capacity at different lifting height

Up to h3 mm ACTUAL CAPACITY (Q)kg
2900 1600 1000
3600 1000 650
4000 800 450
4500 600 350
5500 500 250
Load centre distance (C)mm 600 700



Mast table

Designation Closed mast height h1 mm Free lift h2 mm Lift height h3 mm Extended mast height h4 mm
Two stage 2147 185 3200 3720
  2347 185 3600 4120
  2797 185 4500 5020
Two stage 2147 1640 3200 3720
(full free) 2347 1840 3600 4120
  2797 2290 4500 5020
Three stage 2240 1710 5000 5550
  2430 1895 5500 6050


Specifications subject to change without notice.
