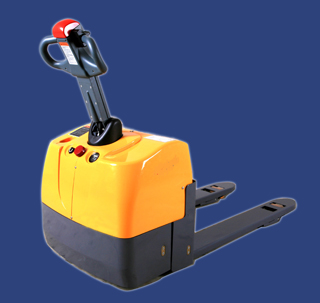

WTC Power Pallet Truck
WP61-13



Go to TECHNICAL DATA



  • Mini Walkie Model with 1300kg Capacity at the Cheapest Price;

  • Free Maintenance Battery;

  • External & Internal Charger Option;

  • Very Small Turning Radius, Smart in Narrow
    Aisle and inside Elevator/ Container;

  • Various kinds of Specifications for Choice;
    Over fork width:520/540/600/685mm

  • Fork length:1000/1100/1150/1200mm

  • Single &. Double Load Wheel Option

  • Single Wheel with 74mm Lowered Height;
    Double Wheel with 85mm Lowered Height;

  • Most Popular Model in theWhole World.

  • Supply OEM model for:
    TVH(Belgium);OMG(Italy);
    CLARK MHC(America);Bigjoe(America);
    BlueGiant(America); Soosung Lift Mfg.(S.Korea)
TECHNICAL DATA
MODEL  WP61-13
540 685
Capacity kg 1300
Characteristics Operator type Walkie
Wheel (Drive/Load) Polyurethane/Polyurethane
Wheel quantity 1D+4L/1D+2L
Maximum speed Laden km/h 4.6
Unladen 5.9
Maximum lifting speed Laden m/s 0.056
Unladen 0.060
Specifications
Maximum lowering speed Laden m/s 0.057
Unladen 0.059
Gradeability Laden % 5
Unladen 7
Lifting height mm 120
Ground clearance+fork thickness mm 85
Raised height mm 194/205
Overall length (unfolded) mm 1570 1620
Fork length mm 1150 1200
Body length (folded) mm 420
Dimensions Overall width mm 704
Overall fork width mm 540 685
Min. outside turning radius mm 1384 1434
Fork width mm 160
Aisle width (800*1200mm pallet): horizonal/vertical mm 1540 1720
Aisle width (1000*1200mm pallet): horizonal/vertical mm 1720 1720
Max battery size (L*W*H) mm 280*178*280
Battery type V/Ah Maintenance Free
Voltage/Capacity kw 24/60
Driving motor kw 0.6


Specifications subject to change without notice.
