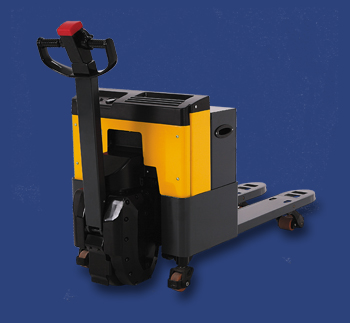

WTC Power Pallet Truck

EPT-20-20W


Go to TECHNICAL DATA



  • Battery tray option.

  • Long life reaction system.

  • The traction unit is mounted centrally, special stronger gear box makes long life of separately excited motor. It's external position ensures adequate ventilation

  • Standard grease fitting on pivot points.

  • Driving performance can be adjusted by program unit.

  • Special in-line caster option for rough ground

TECHNICAL DATA EPT-20-20W

  Model   EPT-20-20W
540 685
Characteristics Capacity  kg 2000
  Operator type    Walkie
  Wheel (Drive/Load)    Polyurethane/Polyurethane
  Wheel quantity    1D+4L/1D+2L
Specifications Maximum speed with/without load  km/h 4.6/5,9
  Maximum lifting speed with/without load m/s 0.051/0.060
  Maximum lowering speed with/without load m/s 0.052/0.059
  Gradeability Laden  % 5
  Unladen  mm 7
Dimensions Lifting height  mm 120
  Ground clearance+fork thickness  mm 85
  Raised height  mm 205
  Overall length (unfolded)  mm 1802 1850
  Fork length  mm 1150 1200
  Body length (folded)  mm 652
  Overall width  mm 764
  Overall fork width  mm 540 685
  Min. outside turning radius  mm 1617 1667
  Fork width  mm 185
  Aisle width (800*1200mm pallet): horizonal/vertical  mm 1600 2000
  Aisle width (1000*1200mm pallet): horizonal/vertical  mm 1800 2000
  Max battery size (L*W*H)  mm 650*215*587
Driving system Battery type  V/Ah Industry
  Voltage/Capacity  kW 24/210
  Driving motor  kW 0.93
  Lifting motor  kW 2.2
  Control system    Curtis 1243
  Traveling brake    Regenerate
  Packing brake    Mechanical


Specifications subject to change without notice.
