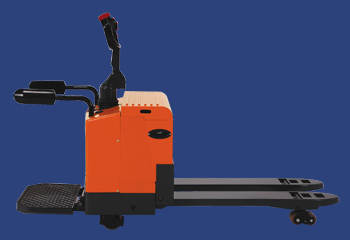

MODEL |
|
|
EPT-20-20E |
| 540 |
685 |
|
Capacity |
kg |
2000 |
| Characteristics |
Operator type |
|
Rider |
|
Wheel (Drive/Load) |
|
Polyurethane/Polyurethane |
|
Wheel quantity |
|
1D+4L/1D+2L |
|
Maximum speed Laden |
km/h |
6 |
|
Unladen |
|
8 |
|
Maximum lifting speed Laden |
m/s |
0.056 |
|
Unladen |
|
0.060 |
| Specifications |
|
|
|
|
|
|
|
|
Maximum lowering speed Laden |
m/s |
0.057 |
|
Unladen |
|
0.059 |
|
Gradeability Laden |
% |
5 |
|
Unladen |
|
7 |
|
Lifting height |
mm |
120 |
|
Ground clearance+fork thickness |
mm |
85 |
|
Raised height |
mm |
205 |
|
Overall length (unfolded) |
mm |
2210 |
2260 |
|
Fork length |
mm |
1150 |
1200 |
|
Body length (folded) |
mm |
710 |
| Dimensions |
Overall width |
mm |
802 |
|
Overall fork width |
mm |
540 |
685 |
|
Min. outside turning radius |
mm |
1655 |
1705 |
|
Fork width |
mm |
185 |
|
Aisle width (800*1200mm pallet):
horizonal/vertical |
mm |
1636 |
2563 |
|
Aisle width (1000*1200mm
pallet): horizonal/vertical |
mm |
1836 |
2563 |
|
Max battery size (L*W*H) |
mm |
608*274*480 |
|
Battery type |
V/Ah |
Industry |
|
Voltage/Capacity |
kw |
24/210 |
|
Driving motor |
kw |
2.2 |
| Driving system |
Lifting motor |
kw |
2 |
|
Control system |
|
Curtis 1243 |
|
Traveling brake |
|
Regenerate |
|
Packing brake |
|
Electromagnetic |
| |
|
|
|
|
Specifications subject to change without notice. |
