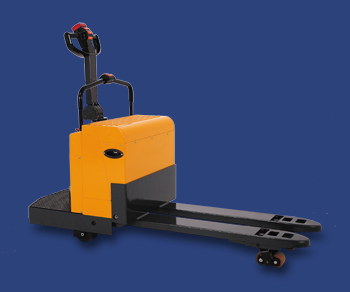

WTC Power Pallet Truck

EPT-20-20A



Go to TECHNICAL DATA



  • Ergonomic operating handle and controls.

  • Special option for entry and exist rollers.

  • Double pallet long forks option.

  • Comfortable rider platform.

    •

  • Big size is available.

  • Two lift cylinders and one extra central cylinder, ensure stable operation.

  • Strong and reliable forks.

  • Single or double load wheel option.

    •
TECHNICAL DATA EPT-20-20A

MODEL  EPT-20-20A
  540 685
Capacity kg 2000
Characteristics  Operator type  Rider
Wheel (Drive/Load) Polyurethane/Polyurethane
Wheel quantity 1D+4L/1D+2L
Maximum speed Laden km/h 6
Unladen 8
Maximum lifting speed Laden m/s 0.056
Unladen 0.060
Specifications
Maximum lowering speed Laden m/s 0.057
Unladen 0.059
Gradeability Laden % 5
Unladen 7
Lifting height mm 120
Ground clearance+fork thickness mm 85
Raised height mm 205
Overall length (unfolded) mm 2077 2127
Fork length mm 1150 1200
Body length (folded) mm 927
Dimensions  Overall width  mm 802
Overall fork width mm 540 685
Min. outside turning radius mm 1872 1922
Fork width mm 185
Aisle width (800*1200mm pallet): horizonal/vertical mm 1630 2245
Aisle width (1000*1200mm pallet): horizonal/vertical mm 1838 2245
Max battery size (L*W*H) mm 608*274*480
Battery type V/Ah Industry
Voltage/Capacity kw 24/210
Driving motor kw 2.2
Driving system  Lifting motor  kw 2
Control system Curtis 1243
Traveling brake Regenerate
Packing brake Electromagnetic


Specifications subject to change without notice.
