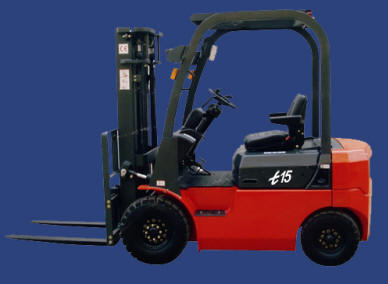

WTC T-Series Engine Fork Lift 1,5-1,8T


                                       Go to TECHNICAL DATA







Wide-View Mast
The operator is able to work with increased safety and accuracy due to a wider view mast.


Wide-Open Operation Space
The area between the foot pedals and the body below the seat is open and free of obstructions
that hamper entering and exiting the forklift



Easily-Detached Floor Panel
One-touch removal of the floorboard gets you right to service operations and reduces down-time.



Adjustable Steering Wheel
Steering wheel can be adjusted by a lever on the right-hand side for the most comfortable operator
position.



Simple, Small-Stroke F/R Lever
The forward-reverse lever swings through a smaller arc than previous models, meaning less effort and less total time used during this basic, often-performed function.



Automobile-Style Light/Turn-Signal Lever
The automotive influence seen in the T Series extends to the thoughtful use of an automobile-style light and turn-signal lever,with simple actions that let the operator focus on the job



TECHNICAL DATA
T series1-1.8t/ 3300lb-4000lb forklift specification

General
Model   FD15T-NE92  FG15T-F2 FD18T-NE92  FG18T-F2   FD15T-NE92  FG15T-F2 FD18T-NE92  FG18T-F2
Power type   Diesel Gasoline Diesel Gasoline   Diesel Gasoline Diesel Gasoline
Rated capacity Kg 1500 1500 1800 1800 lb 3300 3300 4000 4000
Load center mm 500 500 500 500 inch 20 20 20 20
Characteristics & Dimensions  Lift height mm 3000 3000 3000 3000 inch 118 118 118 118
Free lift height mm 120 120 120 120 inch 4.7  4.7  4.7  4.7
Fork size L×W×T mm 920×100×35 920×100×35 920×100×35 920×100×35 inch 36.2×3.9×1.4 36.2×3.9×1.4 36.2×3.9×1.4 36.2×3.9×1.4
Mast tilt range F/R deg 12-jun 12-jun 12-jun 12-jun deg 12-jun 12-jun 12-jun 12-jun
Fork overhang(wheel center to fork face) mm 420 420 420 420 inch 16.5  16.5  16.5  16.5
Rear overhang mm 420 420 420 420 inch 16.5  16.5  16.5  16.5
Overall dimensions Length to face of fork mm 2230 2230 2270 2270 inch 88 88 89 89
Overall width mm 1080 1080 1080 1080 inch 43 43 43 43
Mast lowered height mm 1995 1995 1995 1995 inch 79 79 79 79
Mast extended height mm 3960 3960 3960 3960 inch 156 156 156 156
Overhead guard height mm 2070 2070 2070 2070 inch 81 81 81 81
Turning radius(outsude) mm 1995 1995 2035 2035 inch 79 79 80 80
Min.right angle stacking aisle wiath       (Add load length and clearance ) mm 2400 2400 2440 2440 inch 94 94 96 96
AST with pallet 800*1000mm cross fork  mm 3560 3560 3600 3600 inch 140 140 142 142
Performance Speed Travel (No load) Km/h 14 14 14 14 mile/h 8.7  8.7  8.7  8.7
Lifting (Full load) mm/sec 460 460 460 460 inch/sec 18.1  18.1  18.1  18.1
Lowering (Full load) mm/sec 450 450 450 450 inch/sec 17.7  17.7  17.7  17.7
 Max.Drawbar Pull (Full load)  N 20500(17500) 20500(17500) 20500(17500) 20500(17500) N 20500(17500) 20500(17500) 20500(17500) 20500(17500)
Max.Gradeability (Full load) % 20 20 20 20 % 20 20 20 20
Chassis Tyres Front mm 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR   6.50-10-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Rear mm 5.00-8-10PR 5.00-8-10PR 5.00-8-10PR 5.00-8-10PR   5.00-8-10PR 5.00-8-10PR 5.00-8-10PR 5.00-8-10PR
Tread Font mm 920 920 920 920 inch 36 36 36 36
Rear mm 920 920 920 920 inch 36 36 36 36
 Wheelbase  mm 1430 1430 1430 1430 inch 56 56 56 56
Ground clearance Lowest   110 110 110 110 inch 4.3  4.3  4.3  4.3
Wheelbase center   145 145 145 145 inch 5.7  5.7  5.7  5.7
Weight Self weight Kg 2700 2700 2900 2900 lb 6000 6000 6400 6400
Weight Distribution Full load Front   3570 3570 3995 3995 lb 7900 7900 8800 8800
Rear   630 630 705 705 lb 1400 1400 8800 8800
No load Front   1215 1215 1305 1305 lb 2700 2700 2900 2900
Rear   1485 1485 1595 1595 lb 3300 3300 3500 3500
Power & transmission Battery Voltage/Capacity(20HR) V/AH 12/60 12/60 12/60 12/60 V/AH 12/60 12/60 12/60 12/60
Engine Modal   4TNE92 F2(2.2L) 4TNE92 F2(2.2L)   4TNE92 F2(2.2L) 4TNE92 F2(2.2L)
Manufacture   YANMAR Mazda YANMAR Mazda   YANMAR Mazda YANMAR Mazda
Rated output/r.p.m kw 33/2450 37.2/2700 33/2450 37.2/2700 hp 44/2450 50/2700 44/2450 50/2700
Rated torque/r.p.m N.m 136/1600 142/1800 136/1600 142/1800 N.m 136/1600 142/1800 136/1600 142/1800
No.of cylinder   4 4 4 4   4 4 4 4
Bore×Stroke mm 92×100 86×94 92×100 86×94 inch 3.6×3.9 3.4×3.7 3.6×3.9 3.4×3.7
Displacement cc 2659 2184 2659 2184 cc 2659 2184 2659 2184
Fuel tank capacity L 50 50 50 50 L 50 50 50 50
Transmissions Manufacture   CHINA CHINA CHINA CHINA   CHINA CHINA CHINA CHINA
Type   Powershift  Powershift  Powershift  Powershift    Powershift  Powershift  Powershift  Powershift
Stage FWD/RVS   01-jan 01-jan 01-jan 01-jan   01-jan 01-jan 01-jan 01-jan
Operating pressure For attachments Mpa 17.5 17.5 17.5 17.5 Mpa 17.5 17.5 17.5 17.5



1. Special lifting height available ( 2-stage mast : 2.5m, 2.7m, 3.0m,3.3m, 3.6m, 4m, 4.5m. 3-stage mast : 4.3m, 4.5m, 4.8m, 5m, 5.5m, 6m /2-stage mast : 98inch, 106inch, 118inch, 130inch, 142inch, 157inch, 177inch. 3-stage mast : 169inch, 177inch,
2. The specification in the table are for standard models only . For further information please contact us.
3. Specification are subject to change without notice.

1.5~1.8t T series mast: (pneumatic)

Type  Model  Max.fork height Overall height Free lift Front   Overhang Tilt range  Capacity
Lowered  Extended  Without backrest With backrest FWD BWD Load capacity at 500 mm
Without backrest With backrest Single tire Double tire
1.5t 1.8t 1.5t 1.8t 1.5t 1.8t
mm mm mm mm mm mm mm mm Deg Deg kg kg kg kg
Wide view mast 2W200 2000 1495 2585 2955 120 120 420 420 6 12 1500 1800 1500 1800
2W250 2500 1745 3085 3455 120 120 420 420 6 12 1500 1800 1500 1800
2W270 2700 1845 3285 3655 120 120 420 420 6 12 1500 1800 1500 1800
2W300 3000 1995 3585 3955 120 120 420 420 6 12 1500 1800 1500 1800
2W330 3300 2145 3885 4255 120 120 420 420 6 12 1500 1800 1500 1800
2W350 3500 2245 4085 4455 120 120 420 420 6 12 1500 1800 1500 1800
2W360 3600 2295 4185 4555 120 120 420 420 6 12 1500 1800 1500 1800
2W400 4000 2545 4585 4955 120 120 420 420 6 12 1400 1600 1500 1800
2W430 4300 2695 4885 5255 120 120 420 420 6 6 1300 1500 1400 1600
2W450 4500 2795 5085 5455 120 120 420 420 6 6 1250 1400 1350 1500
wide view             full 2-stage mast 2F250 2500 1790 3105 3455 1045 765 420 420 6 12 1500 1800 1500 1800
2F270 2700 1890 3305 3655 1145 865 420 420 6 12 1500 1800 1500 1800
2F300 3000 2040 3605 3955 1345 1105 420 420 6 12 1500 1800 1500 1800
2F330 3300 2190 3905 4255 1495 1165 420 420 6 12 1500 1800 1500 1800
2F360 3600 2340 4205 4555 1645 1315 420 420 6 12 1500 1800 1500 1800
2F400 4000 2540 4605 4955 1815 1565 420 420 6 12 1400 1700 1500 1800
wide view             full 3-stage mast 3F430 4300 1965 5070 5255 1425 1080 440 440 6 6 1250 1450 1350 1550
3F450 4500 2045 5130 5465 1485 1140 440 440 6 6 1200 1350 1300 1450
3F480 4800 2160 5445 5755 1575 1230 440 440 6 6 1100 1250 1200 1350
3F500 5000 2210 5605 5955 1665 1320 440 440 6 6 1050 1150 1150 1250
3F550 5500 2375 6120 6455 1825 1480 440 440 3 6 / / 950 1050
3F600 6000 2600 6695 6955 1975 1630 440 440 3 6 / / 750 850



Note:With sideshifter minus 150Kg, with integral sideshifter minus 100Kg.





Specifications are subject to change without notice.
